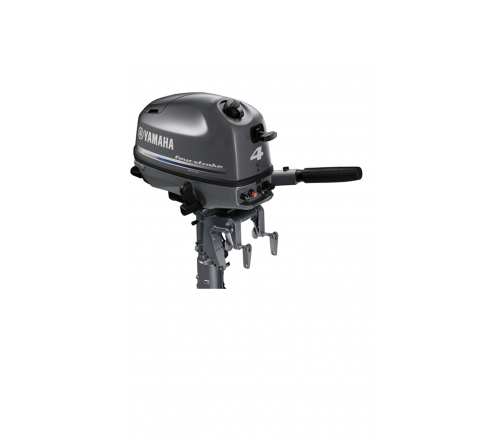

F4SMHA Yamaha 4 Stroke 4hp Short Shaft PORTABLE OUTBOARD FOR SALE
Filling a vital horsepower bracket in the outboard market, the all new F4SMHA Yamaha 4 Stroke 4hp has been designed to be easy to use and exceptionally smooth running. With a range of exclusive features, increased capacity for greater performance as well as the latest generation cowl design and graphics, the F4B is sure to be a popular addition to Yamaha’s current engine line up.
For easy transport and mounting the F4B is fitted with an ergonomically designed grasp on the front of the motor and a large carry handle on the rear. The engine also features Yamaha’s unique oil leak prevention system which allows the owner to store or transport the engine on either side or its front without leaking engine oil. This means worry free transport in a car boot and hassle free storage.
Available in:
F4SMHA – Manual Start, Tiller Handle, Transom height – Standard
F4LMHA – Manual Start, Tiller Handle, Transom height – Long
General Features:
8P Alloy prop
1.1L Inbuilt fuel tank
5 position tilt
3 position shallow water drive
Spline prop shaft
Dual fuel line connection for optional remote tank
Specifications
Engine Type
OHV, 1-cylinder
Displacement
139.0 cc
Bore x Stroke
62 x 46 mm
Recommended Max RPM
4000-5000
Lubrication System
Wet sump
Fuel Management
Carb
Ignition
CDI
Starter System
Manual Choke
Alternator Output
12V-6Amp with Rectifier Regulator (optional)
Operation Method
Tiller Handle
Trim & Tilt Method
Manual Tilt
Fuel Tank Capacity
1.1 L
Gear Ratio
2.08:1
Previous model code(s)
F4BMHS
Dimensions
Transom Length
F4SMHA: 432 mm (17 in)
F4LMHA : 508 mm (20 in)
Weight
F4SMHA : 27 kg
F4LMHA : 28 kg
CDI-E: CDI-Electronic Automatic
CDI-M: CDI-Microcomputer
TCI: Transistor Controlled Ignition
Prices do not include fitting or accessories where applicable.
It is a Yamaha stipulation that all Yamaha Outboards be fitted and personally delivered by the selling Yamaha outboard dealership.
Detail
Brand
: Yamaha
Model
: F4SMHA
Length
: 0.00 Feet
Year
: 2021
Category
: Boat Engines and Outboards
Hull Type
:
Hull Style
:
Power Type
:
Type Of Sales
: Dealer
Engine Make
:
Engine Type
:
Condition
: New
